Command presence with executive-level comfort, paired with B6-certified armoring for uncompromised safety.

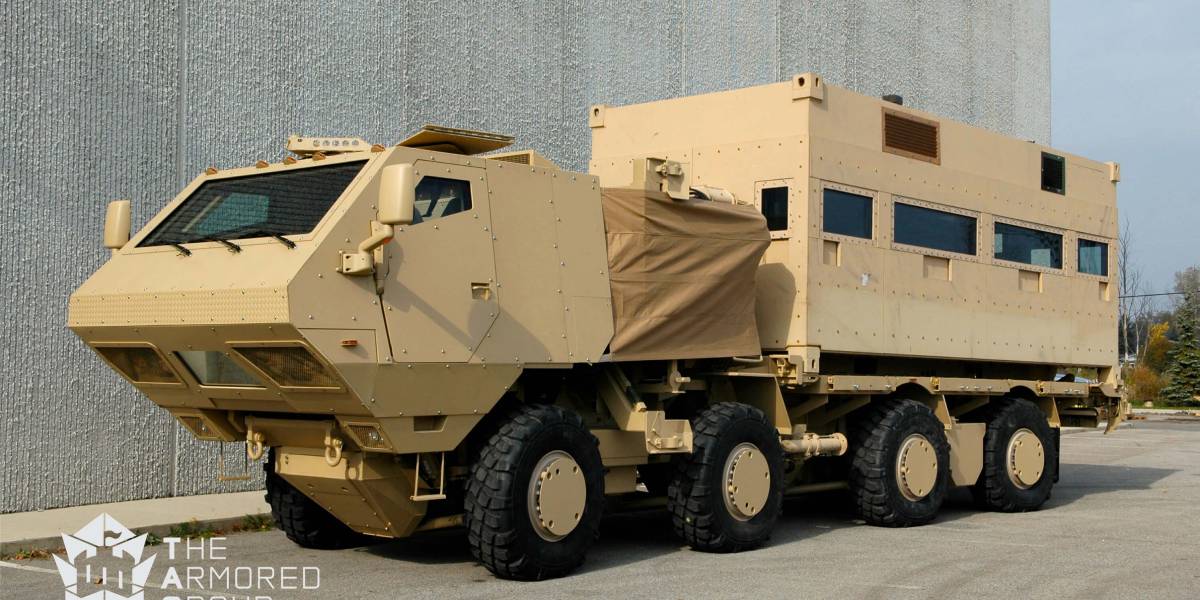

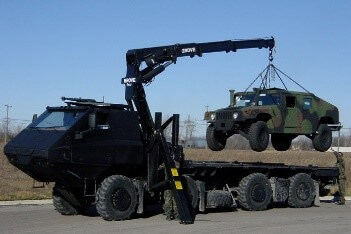

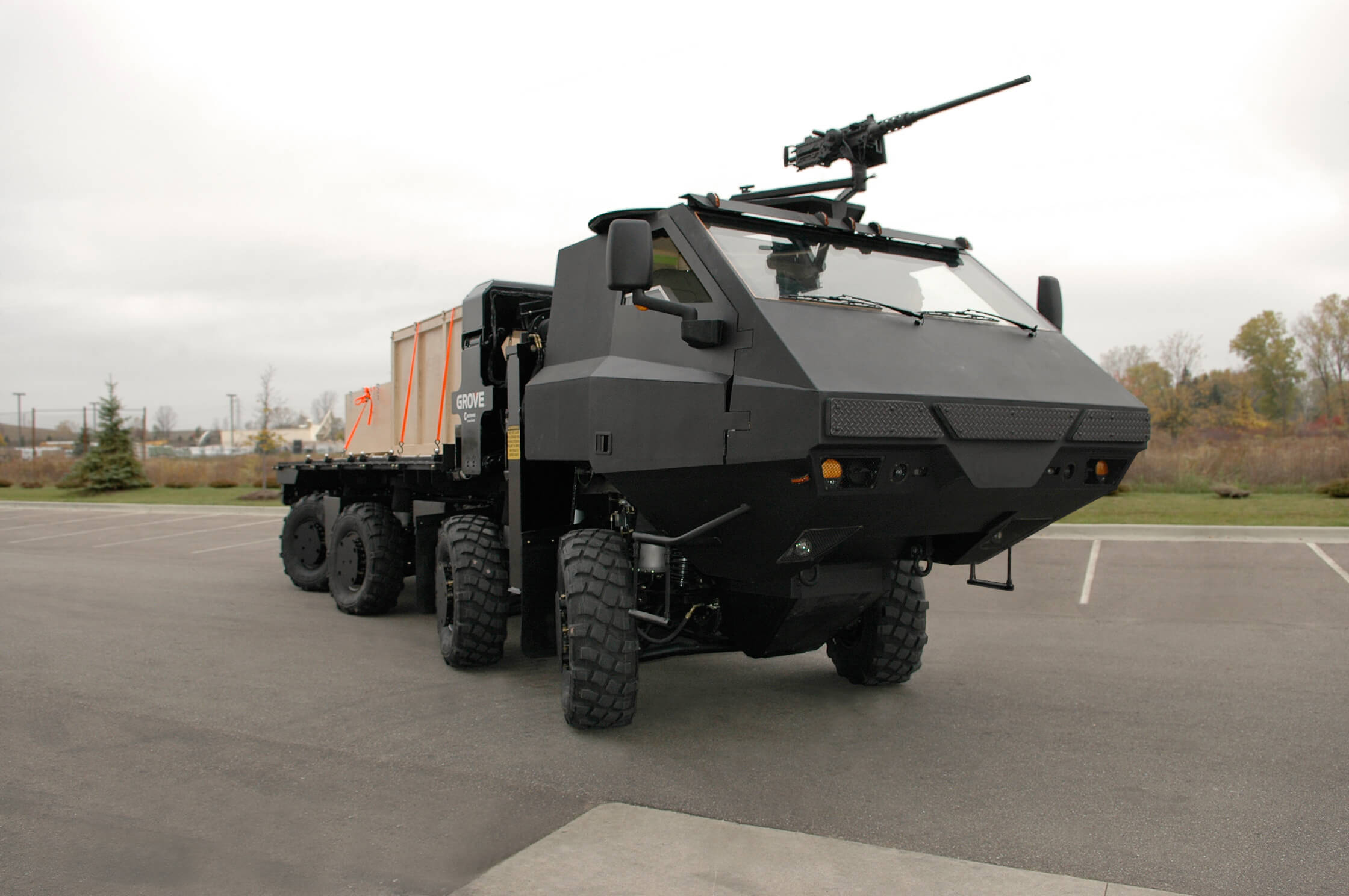

The GREAT DANE is a highly capable and customize-able vehicle produced in variants of 4,6,8 or 10 wheels. The Great Dane is a container mover with the ability to load, transport and unload equipment quickly and easily.
Powered by a 600 hp caterpillar engine with 6 speed transmission, in a fully protected engine assembly, the Great Dane has a great amount of power available. The Great Dane also features driver selectable all wheel steering, high wheel travel, joystick operated active suspension as well as lowering suspensions for quick troop ingress/egress.
| POWERTRAIN | |
| Engine make | Caterpillar |
| Engine model | C13 |
| Engine type | Turbo charged diesel I6 |
| Displacement, l | 12.5 |
| Maximum Power, hp | 600 |
| Maximum Torque, Nm | 2373 |
| Fuel type | diesel |
| RUNNING GEAR | |
| Driveline | 8x8x8 (all wheels steering) |
| Axle and suspension FR | Independent hydropneumatic with adjustable ride height |
| Axle and suspension RR | |
| Transfer case | 2 speed |
| Run flat inserts | Yes |
| CTIS / STIS | CTIS |
| Brakes FR | Heavy-Duty Inboard Pneumatic Disc Brakes |
| Brakes RR | Heavy-Duty Inboard Pneumatic Disc Brakes |
| ELECTRICAL SYSTEM | |
| Voltage | Dual 12V and 24V |
| Batteries | 2 |
| Alternator | 570A |
| Auxiliary sockets 12V | Yes |
| 120 / 220V AC external power input | Optional |
| NATO slave starting system | Yes |
| Battery monitor | Yes |
