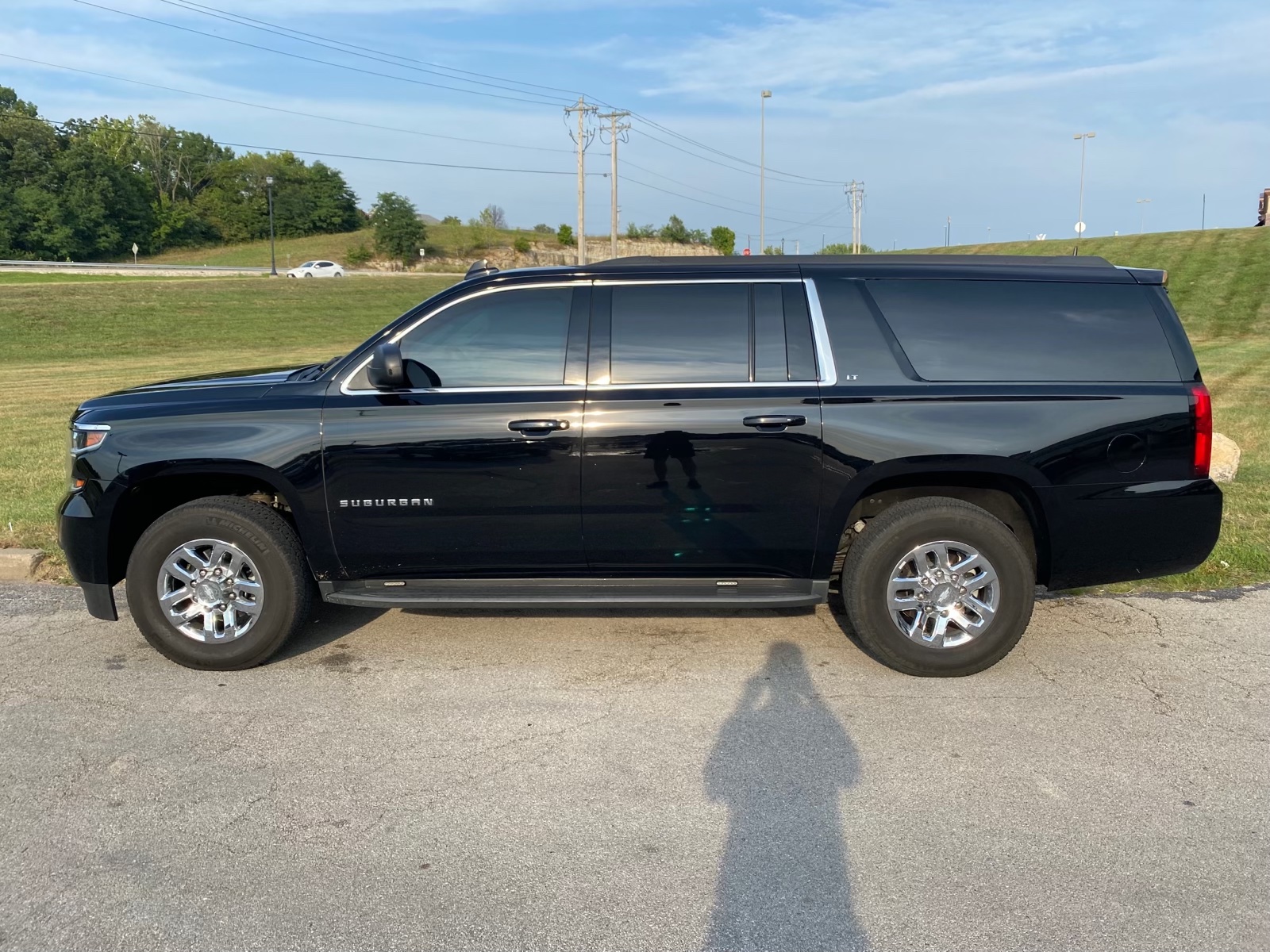

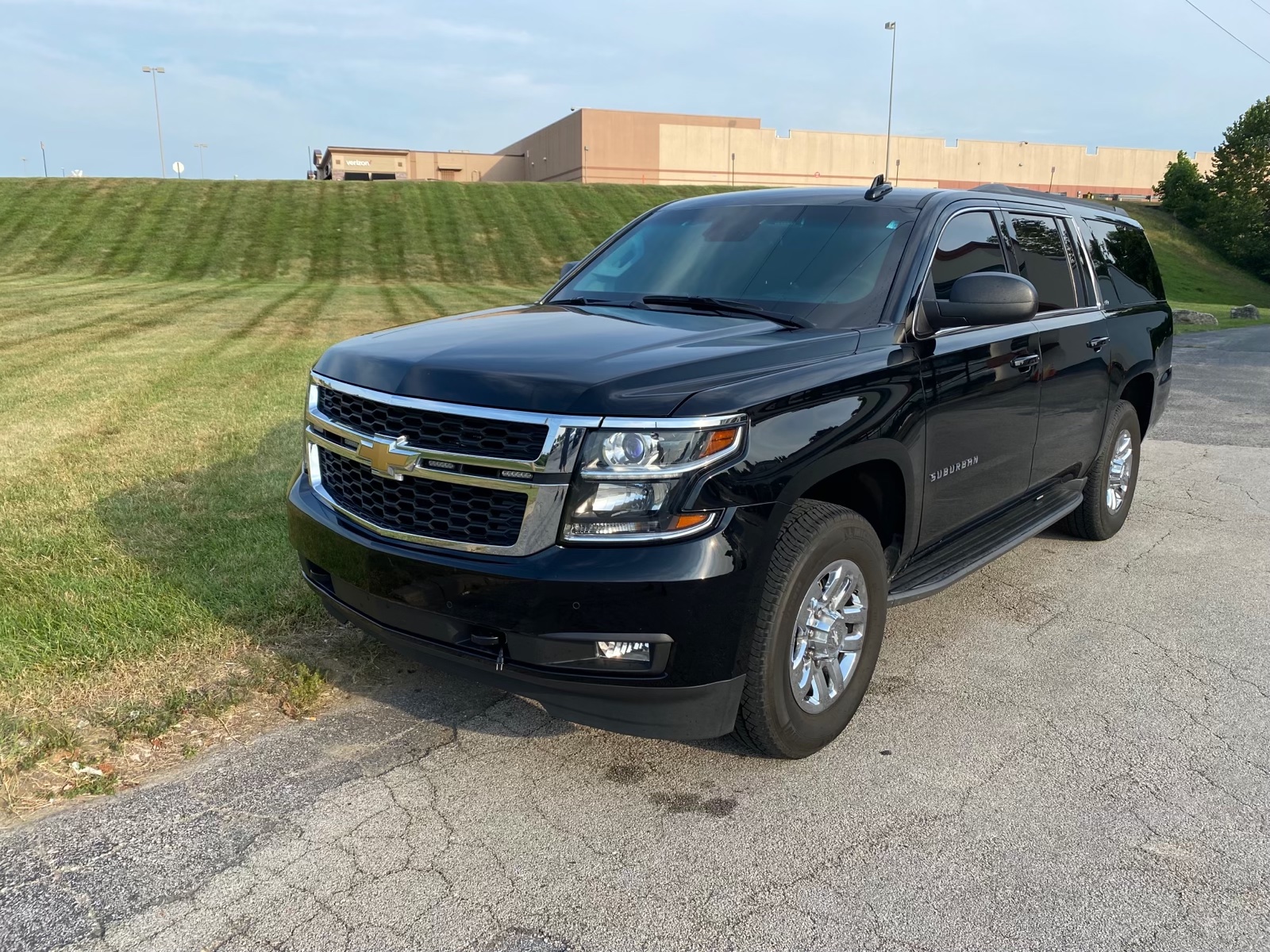

2016 Chevrolet Suburban 3500 LT

2016 CHEVROLET SUBURBAN 3500 LT with B6 Armor

• Exterior: BLACK
• Interior:  Leather, Black/Gray
• 4×4
• Engine: 6.0L V8 Gasoline
• Mileage: Approx. 17,000 Miles

ARMORING SPECIFICATIONS – All vertical panels armored, including door panels, using material by certified supplier to Level NIJ III (7.62x51mm; 7.62x39mm and lesser threats)

GLASS (TINTED)

• Windshield                                               OEM Tint
• Front Driver Door                                   OEM Tint
• Front Passenger Door                           OEM Tint
• 2^nd Row Driver’s Side Door                  Legal Dark Tint (Not limo)
• 2^nd Row Passenger’s Side Door          Legal Dark Tint (Not limo)
• ¼ Panel Glass    Armored Glass         Non Tinted
• OEM ¼ Panel Glass                              Tinted to hide armor plate
• Rear Barn Door Armored Glass          Non Tinted
• Rear Door OEM Glass                          Tinted to hide armored barn door

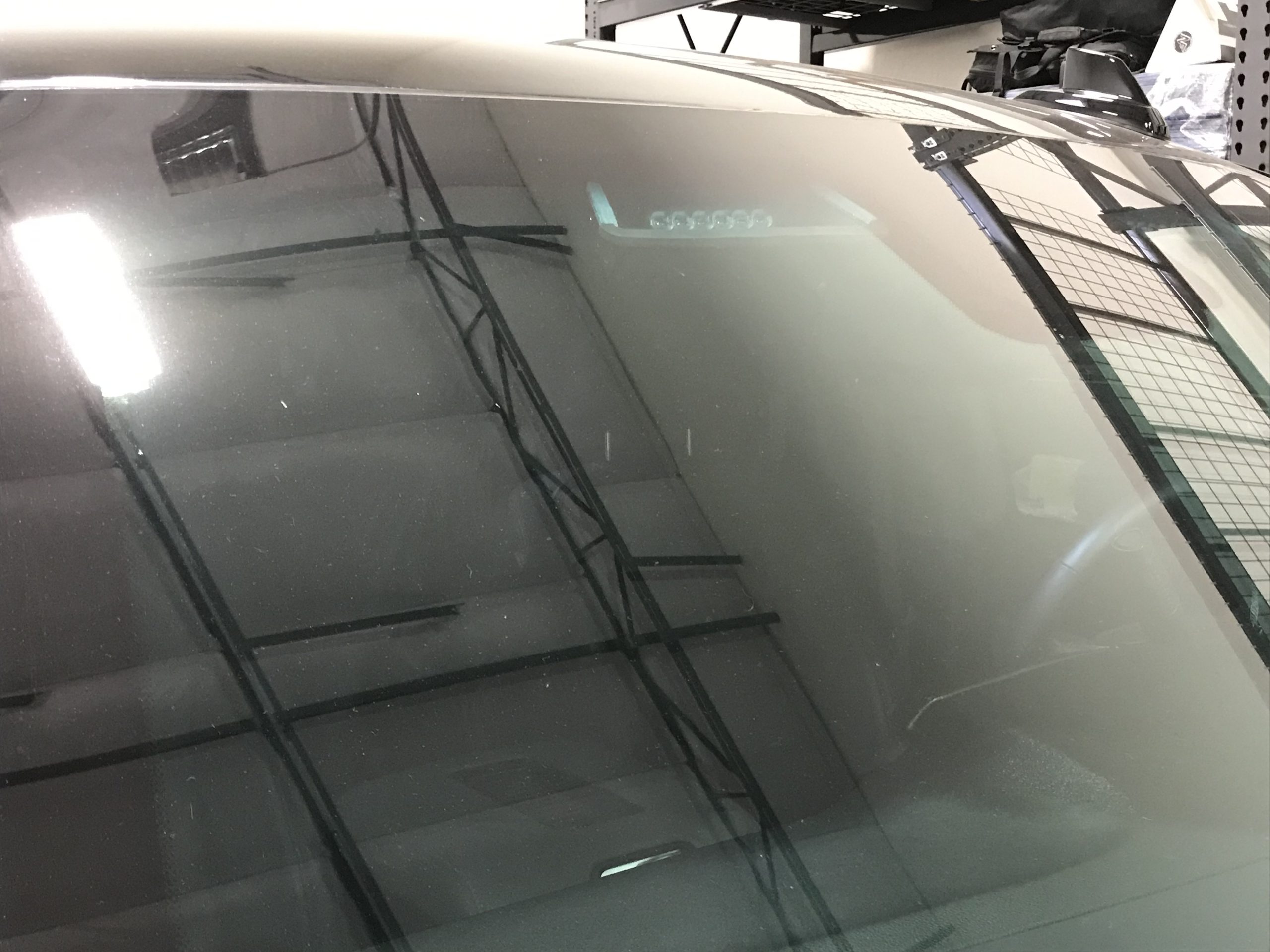

• Windshield replaced with OEM Curved transparent armor (glass) with material provided by certified supplier to Level NIJ III (7.62x51mm; 7.62x39mm and lesser threats)
• Door glass replaced with transparent armor (glass) with material provided by certified supplier to Level NIJ III (7.62x51mm; 7.62x39mm and lesser threats)
• All Door windows operational (4” to 6”)
• Rear quarter glass left OEM with smaller transparent armor (glass) insert set inside steel module behind the OEM Glass

• Material provided by certified supplier to Level B6 (7.62x51mm; 7.62x39mm and lesser threats)
• Rear OEM Glass tinted to not allow ability to see internal module and keep unit looking as discreet as possible

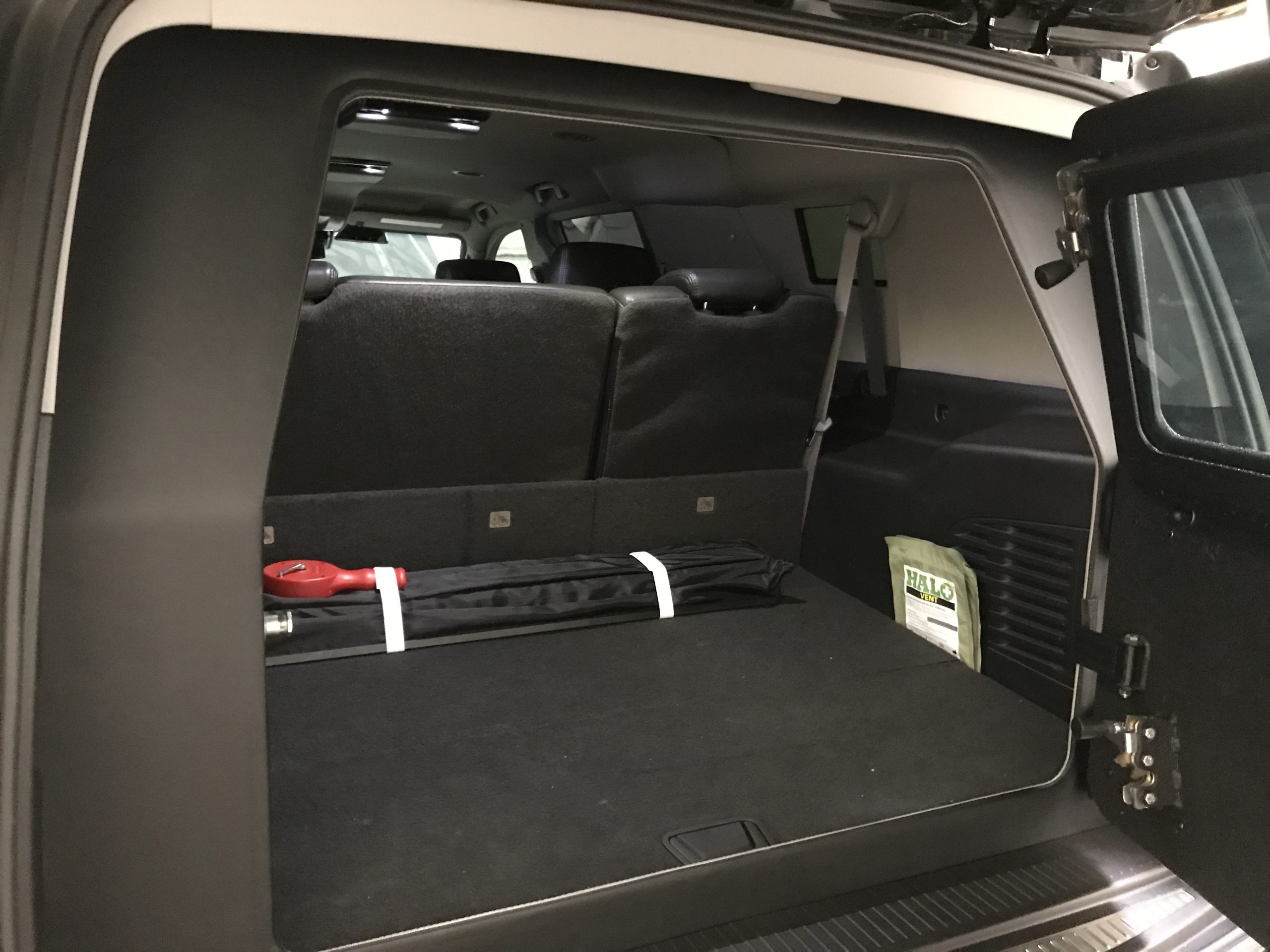

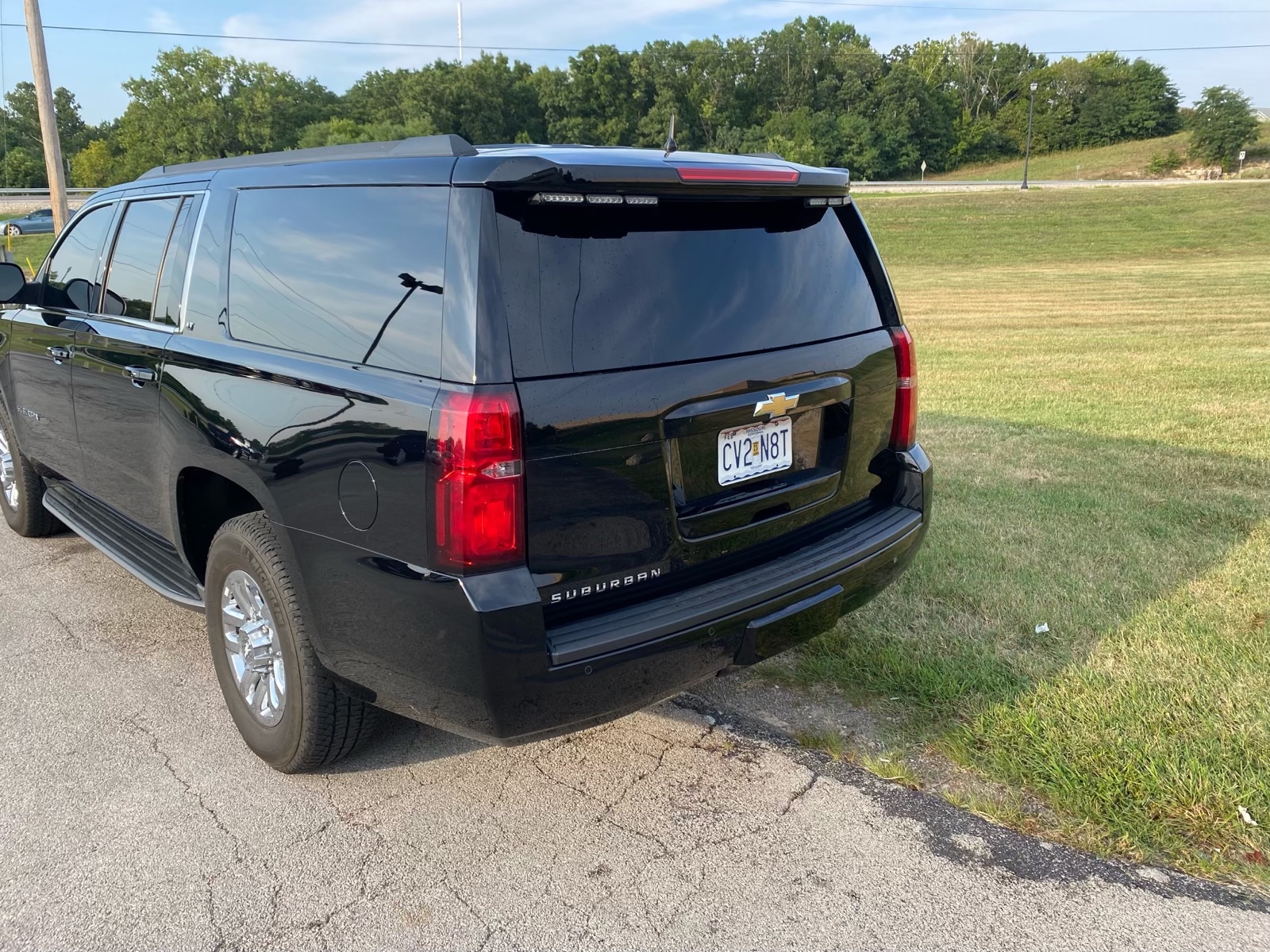

REAR DOOR

• Rear door kept original.  Armored bulkhead swing door behind original door with large glass insert in wall with material provided by certified supplier to Level B6 (7.62x51mm; 7.62x39mm and lesser threats)

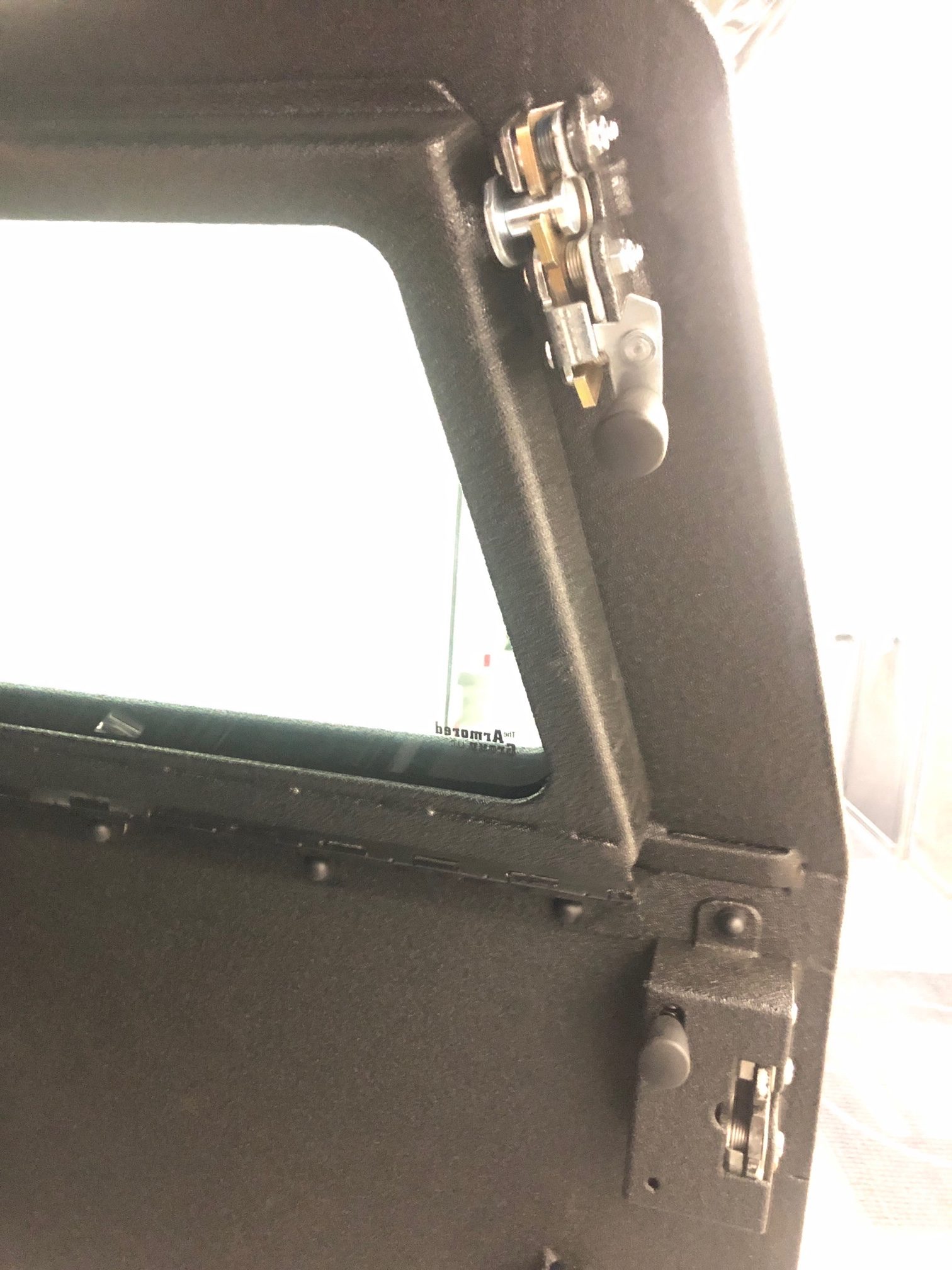

• Flip Down Rear Door Glass and Rear OEM Door Glass opening mechanism

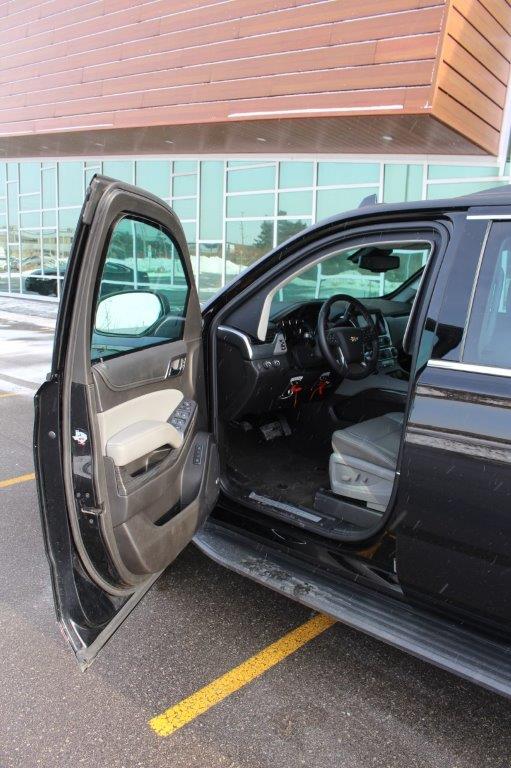

DOOR REINFORCEMENTS

• Interior door panels left OEM
• Metal Rods Inserted into OEM Door Panel Hand Hold to keep door panel from being pulled off or break due to additional door weight
• Nylon Overextension Straps installed to keep door from extending too far when opened
• Upgraded Door Hinges to help eliminate door sag

ARMOR OVERLAPS

• Overlap System around each window using ballistic material throughout will be used to ensure complete protection from gaps in vehicle.  Material by certified supplier
• All pillar posts A, B, C and D armored by certified supplier; All overlaps will be covered to match interior and made to look OEM in appearance

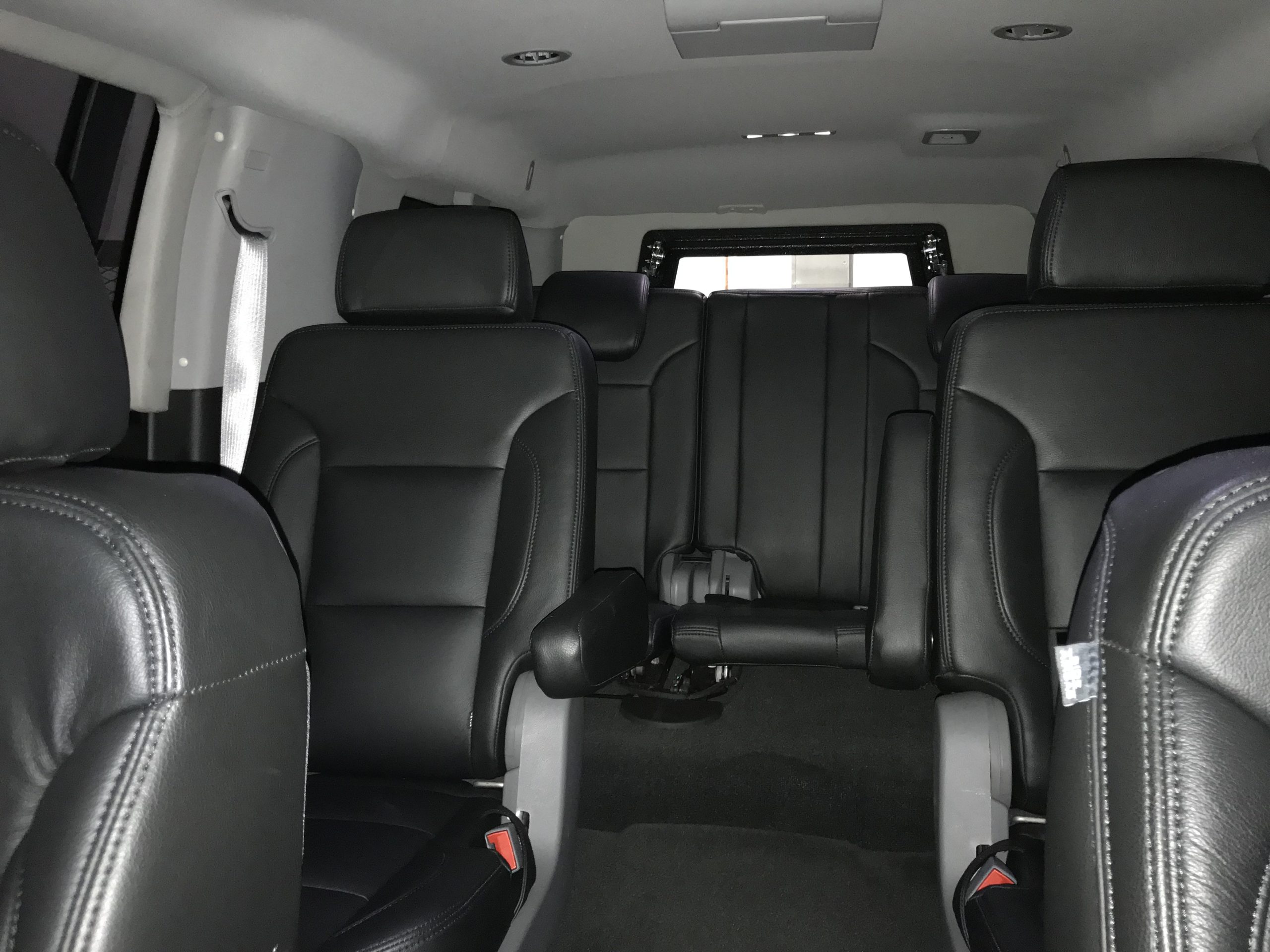

2^nd ROW OF SEATS

• Captain’s Chairs (Leather)

REAR SEATS (3^RD ROW)

• Leather Rear Seats

ROOF

• Entire roof area armored to NIJ III Levels

FLOOR

• Floor armored using material that acts as an absorbent for blast protection

(2 DM 51 Grenades)

FIREWALL

• Complete Internal Firewall armoring to B6 protection Level

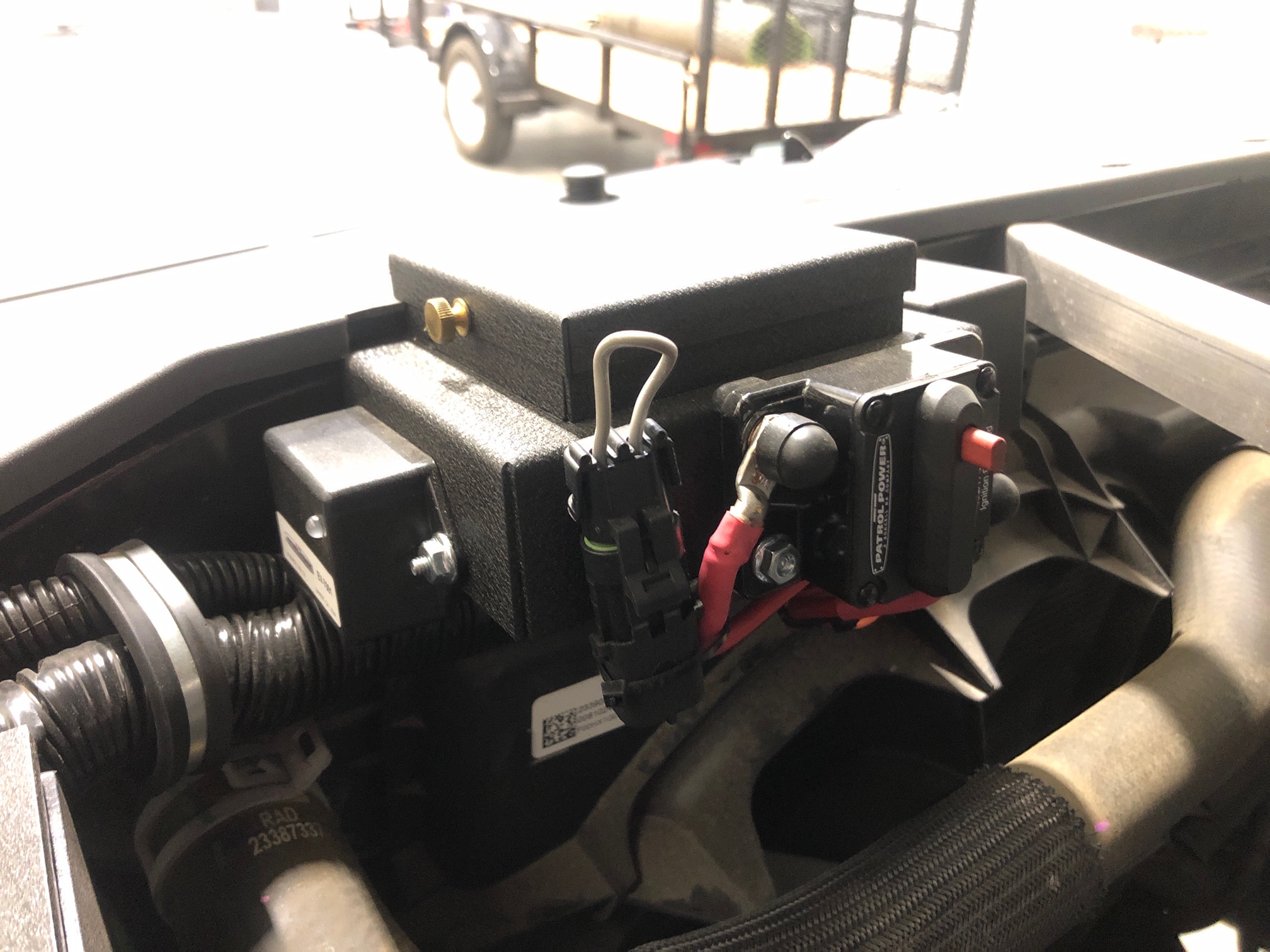

BATTERY & CPU PROTECTION

• Battery and computer protected with NIJ III Level ballistic steel

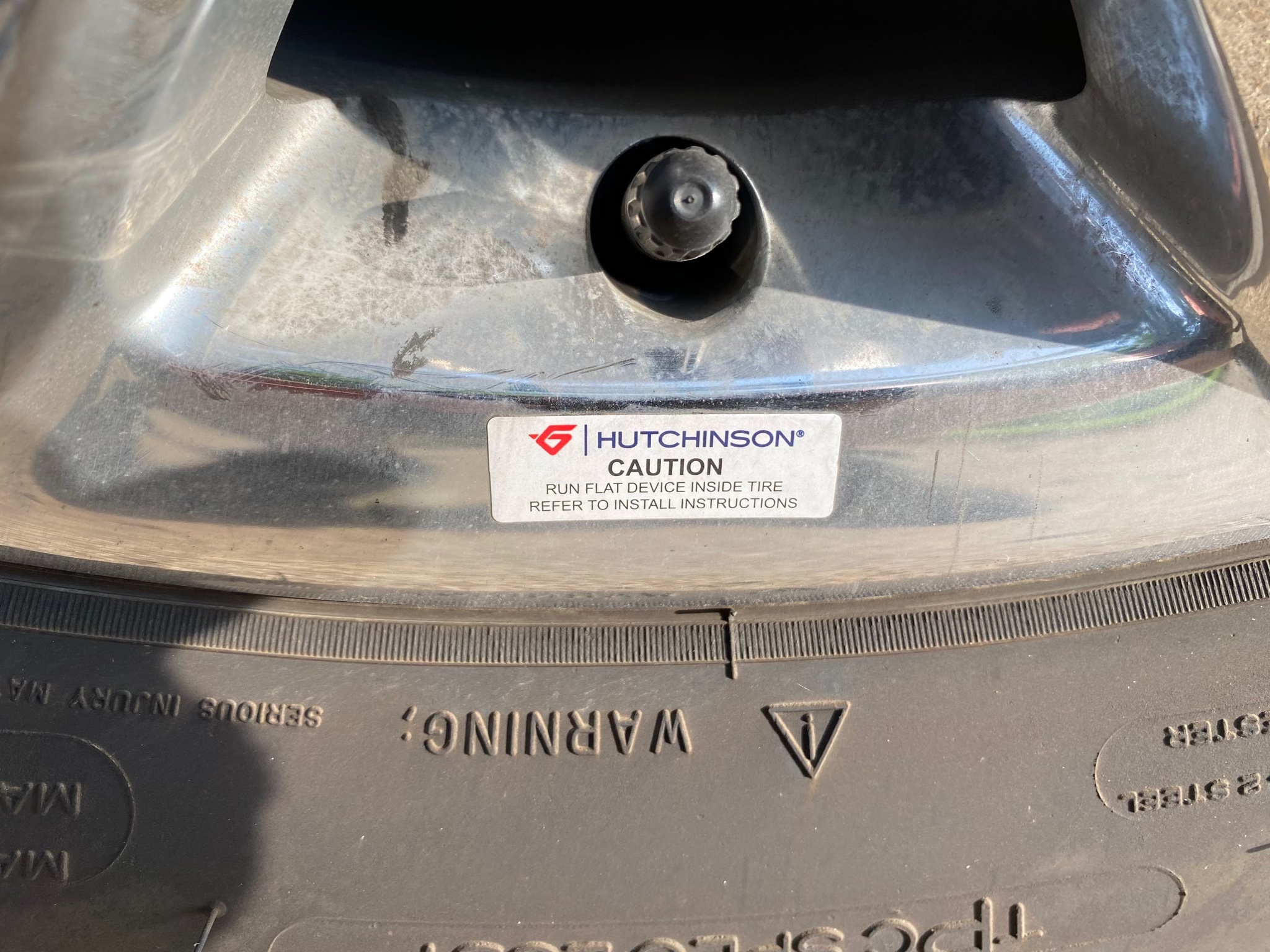

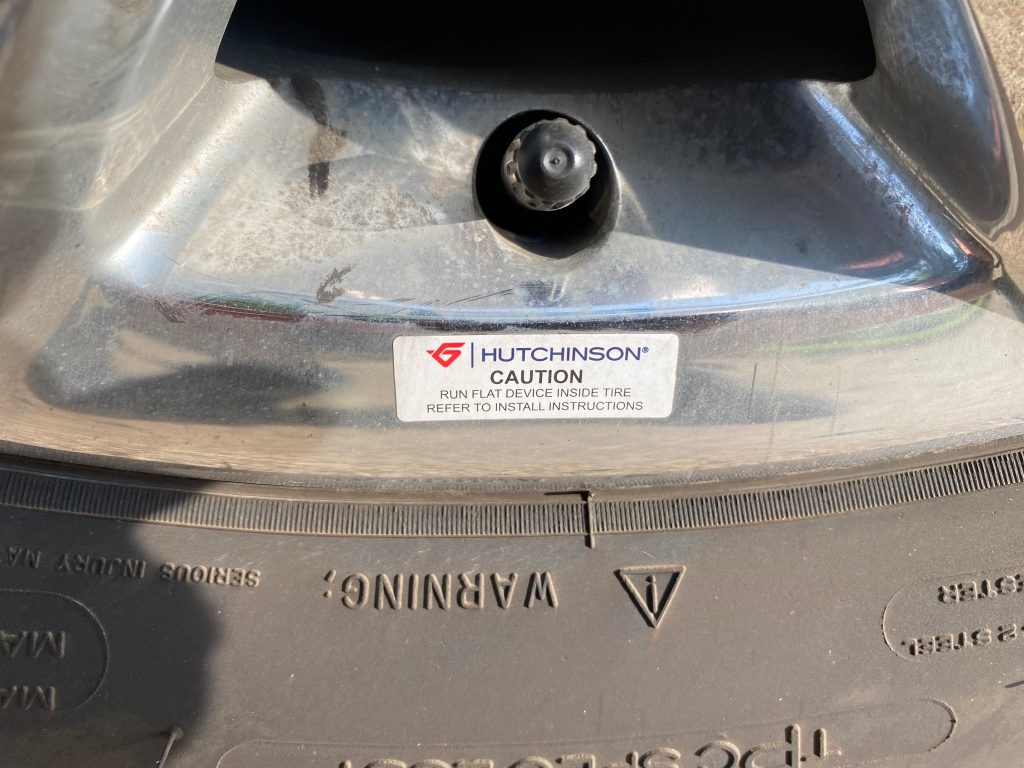

RUN FLATS TIRE SYSTEM

• Run-Flats installed in all tires; including spare

FUEL TANK

• Fuel Tank covered with blast mitigating ballistic steel

SUSPENSION & BRAKES

• Chevrolet Suburban 1 Ton Suspension and Brakes

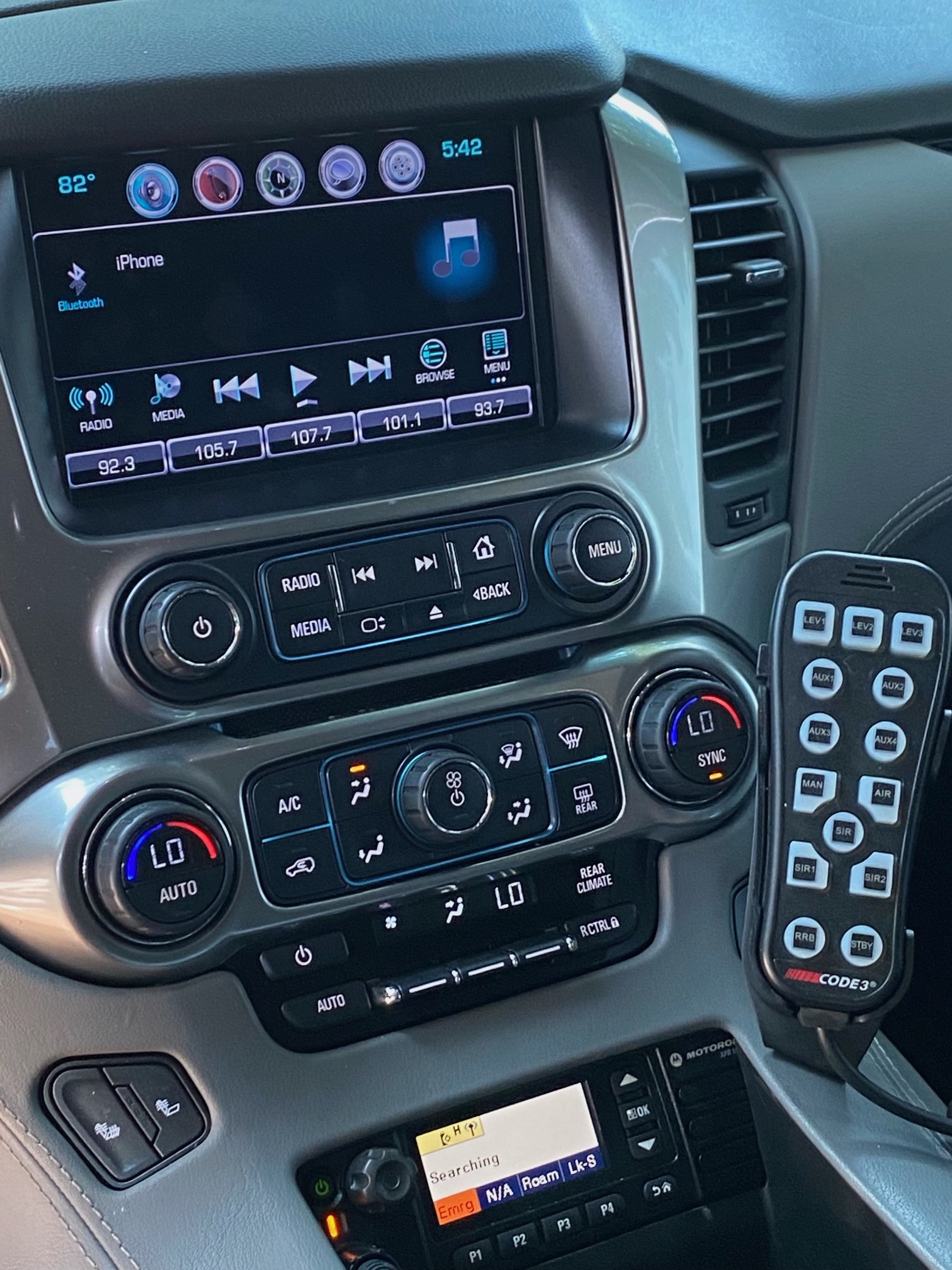

RADIO PACKAGE

• Radio Installed

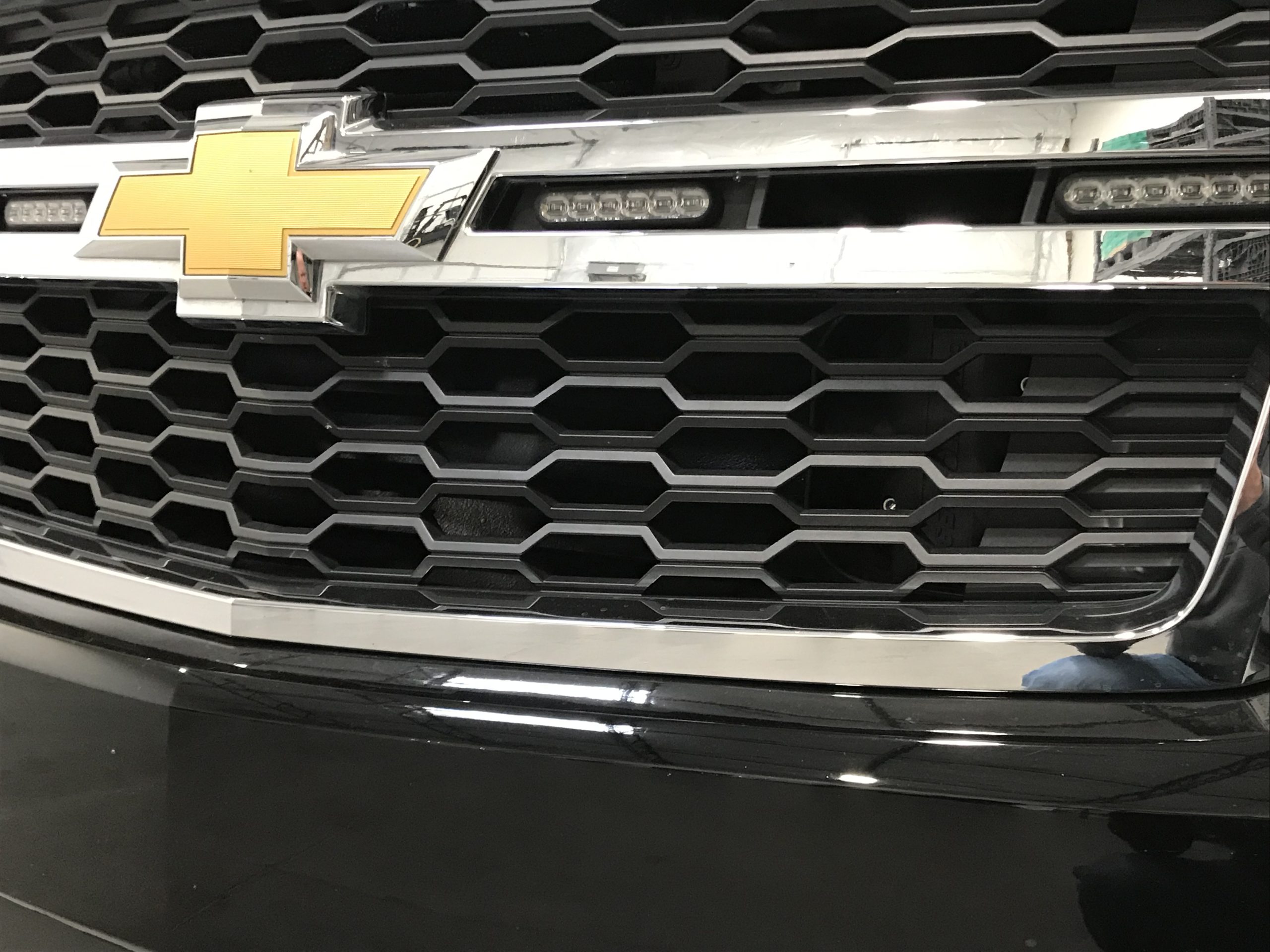

HIDDEN FRONT & REAR BUMPER REINFORCEMENT

• HD Steel installed behind OEM Front and Rear Bumpers

RADIATOR PROTECTION & FRONT CLIP

• NIJ III Hidden Radiator Protection
• NIJ III Steel behind front fenders and headlights
